Car And Motorcycle Brake Tester

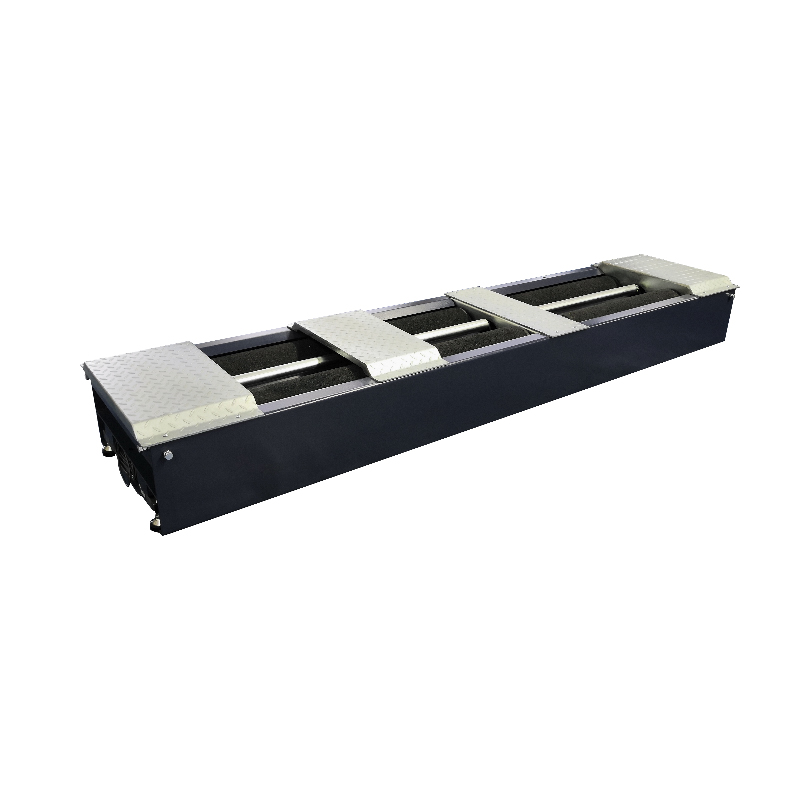

Jevol designed RRT-2500C Car And Motorcycle Brake Tester
- Test Brake Force, Brake Efficiency, Brake Imbalance, Friction Efficiency, Axle Load and Ovality.
- The corundum roller has more than 200,000 life span.
- Combined with weighing function.
- With Slip Rate testing to stop the motor, Brake Tester can protect the tires from wear.
- Installation is very simply and convenient.
- It can be used in garages and vehicle inspection stations, to compose as a vehicle safety test lane with Suspension Tester, Sideslip Tester and Speedometer.
Click to see:Car Brake Tester, Truck Brake Tester, Mobile Brake Tester.
For more information please Inquiry Now
| Item | RRT-2500C |
|---|---|
| Max Axle Load | 3T |
| Test Speed | 2.7km/h |
| Brake Force Range | 0-9000N |
| Motor | 3kW*2 |
| Power Supply | 380V/50Hz |
| Adhesion Coefficient | 0.8 |
| Track | 254 – 2254mm |
| Roller Diameter | 200mm |
| Left Roller Length | 800mm |
| Right Roller Length | 1200mm |
| Dimension (LxWxH) | 2970 x 700 x 385mm |
| Application | Motorcycle,Tricycle,2WD car |
